Air Compressor Generator Combo Units
The Ultimate Power and Air Solution
GenAer’s air compressor generator combination unit is a total self-contained power and air source. The unique, compact design includes a generator, air compressor, air dryer, air tank and fuel tank all in one package. It is the ultimate choice for spray foam, coatings, oil and gas exploration, mobile service industries and more.
Why Nothing Compares to GenAer Combo Units:
- All-in-one design saves space and reduces installation labor and cost
- Heavy duty 1800 rpm generator for constant, even power flow
- Rotary screw air compressor with energy saving idle mode
- Compact air receiver holds reserve air when compressor isn’t running
- Elongated air receiver cools air and removes moisture to decrease stress on the drying system and increase equipment longevity
- Regenerative dryer provides clean, dry, compressed air, achieving dewpoints of -30⁰F and superior air quality
- Easy maintenance
Air Compressor Generator Combo Products
-
Air Compressor Generator Combo Units20 KW 40 CFM– Air Compressor & Generator Combo Unit – PG2040RS
Read more -
-
-
-
-
-
-
-
Why GenAer?
Built to Last
GenAer units are built with high quality components specifically selected for their durability and reliability. This ensures that your GenAer air compressor generator combo unit is built to the highest quality standards.
Deutz Engine
Deutz engines were chosen to power the GenAer air compressor generator combo units due to their quality, reliability and their exceptional power to weight ratio. Deutz engines have excellent warranty, one of the best warranties in the industry.
Lightweight and Compact
The GenAer air compressor generator combo unit’s small footprint helps utilize space in small areas more efficiently. The standard systems are 40″ x 68″ and weigh 1850-1950lbs.
Integrated Air Tank and Air Drying System
All GenAer air compressor generator combo units come equipped with an integrated air receiver, providing air cooling, air storage, and moisture separation. The optional Tsunami filtration and air drying system provides the dry air and exceptional air quality.
Standard Air Compressor Generator Combo Models

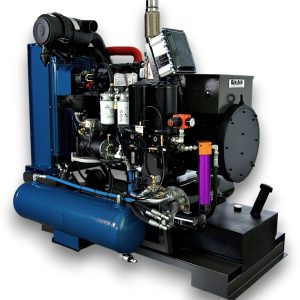

- DU3520RSD – 35KW 20CFM, 1850 lbs
- DU3030RSD – 30KW 30CFM, 1850 lbs
- DU3040RSD – 30KW 40CFM, 1850 lbs
- DU4030RSD – 40KW 30CFM, 1950 lbs
- DU4040RSD – 40KW 40CFM, 1950 lbs
- DU3560RSD – 35KW 60CFM, 1950 lbs
All unit dimensions are 68 inches wide, 40 inches deep and 61 inches tall.
Custom models can be built around your needs.
System Specifications
- Deutz Tier 4 Diesel Engine
- 12 Lead Industrial Copper Wound Generator
- Engine Driven Industrial Rotary Screw Air Compressor
- 2000hr 2-year Compressor Service Interval
- Tsunami Regenerative Air-Drying System
- Electronic Control Panel
- Low Engine Oil Pressure Shutdown
- High Engine Temperature Shutdown
- High Compressor Temperature Shutdown
- 40 Gallon Integrated Poly Fuel Tank
- 14 Gallon Integrated Air Tank
- Powder Coated Steel Base Frame
- Spin on filters for easy engine and compressor service
- Four way lifting pockets
